Data Cube

The callback functions provide access to the cross tabulation data cube data structure.

The data cube is an n-dimensional array (cube) that holds counts for each cell in the cross tabulation request. The data cube structure differs from the structure presented to the SuperSTAR end user in SuperCROSS.

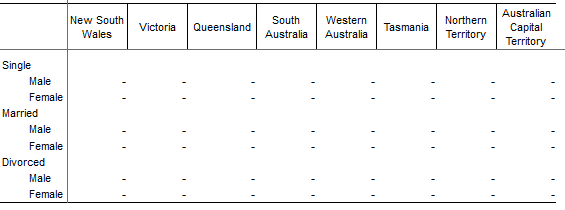

The following diagram shows a table in SuperCROSS with three fields (two fields in the row and one in the column):

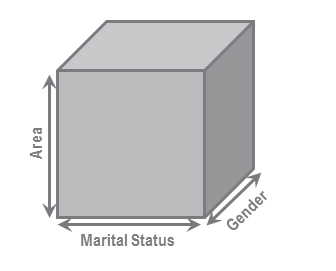

When represented by a data cube, each field is represented in its own unique dimension that can be referenced by an integer value:

Dimension Functions

GetDimensionCountT()

Retrieve the number of dimensions in the data cube.

The type of a dimension can either be summation or classification.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionCountT(PreJobInfoT *JobInfo)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionCountT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The number of dimensions in the cube.

GetDimensionTypeT()

Retrieve the dimension type.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionTypeT(PreJobInfoT *JobInfo, int Dimension)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionTypeT(JobInfoT *JobInfo, int Dimension)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index within the data cube.

Returns

DIM_TYPE_INVALID	The dimension index is invalid.
DIM_TYPE_CROSS_TAB	The dimension is a cross tabulation.
DIM_TYPE_SUMMATION	The dimension is a summation.

Field Functions

GetDimensionFieldCountT()

Retrieve the number of fields for the specified dimension.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldCountT(PreJobInfoT *JobInfo, int Dimension)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldCountT(JobInfoT *JobInfo, int Dimension)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index to return the fields for.

Returns

1	There is one field on the dimension.
1+	There are concatenated fields on the dimension.
0	The dimension index is invalid.

GetDimensionFieldIdentifierT()

Return the ID of a field within the specified dimension.

The ID is derived from the name of the column in the source database that this field is associated with. For SXV4 databases, field IDs are only useful internally within SuperSTAR and are generated when the SXV4 is built in SuperCHANNEL.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldIdentifierT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldIdentifierT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the field ID for.

Returns

The field ID or NULL if the dimension index or field offset are invalid.

GetDimensionFieldLabelT()

Return the label of a field within the specified dimension.

The label is the "display name" shown to end users in the clients (e.g. "Gender"/"Area").

If the field has been recoded then this function returns the renamed/recoded label (use GetDimensionBaseFieldLabelT to retrieve the original label).

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldLabelT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldLabelT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the label for.

Returns

The field label or NULL if the dimension index or field offset are invalid.

GetDimensionFieldBaseIdentifierT()

Return the ID of a field within the specified dimension.

The ID is derived from the name of the column in the source database that this field is associated with. For SXV4 databases, field IDs are only useful internally within SuperSTAR and are generated when the SXV4 is built in SuperCHANNEL.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldBaseIdentifierT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldBaseIdentifierT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the field ID for.

Returns

The field ID or NULL if the dimension index or field offset are invalid.

GetDimensionFieldBaseLabelT()

Return the label of a field within the specified dimension.

The label is the "display name" shown to end users in the clients (e.g. "Gender"/"Area").

This function always returns the original label for this field that was set when the SXV4 was generated in SuperCHANNEL, even if the field has subsequently been recoded.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldBaseLabelT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldBaseLabelT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the label for.

Returns

The field label or NULL if the dimension index or field offset are invalid.

GetDimensionFieldTypeT()

Return the type of a field.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldTypeT(PreJobInfoT* JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldTypeT(JobInfoT* JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the type of.

Returns

The field type.

If the return type is NATIVE_SUM then you can use GetDimensionStatisticalFieldTypeT to find its statistical function.

IsDimensionFieldVisibleT()

Return the visibility of a given field within a dimension, in regards to the end user (i.e., can the end user see the field?)

Fields added by SuperSERVER, for example summation options added via PreJob AppendSummation methods, will be invisible. Fields requested by the end user are visible.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetDimensionFieldIdentifierT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the visibility for.

Returns

1	Visible
0	Invisible

Field Item Functions

Each dimension contains a number of DimensionFieldItems. For example, the Area field has field items called New South Wales, Victoria etc.

GetDimensionFieldItemCountT()

Return the number of field items in a given dimension for a given field.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldItemCountT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldItemCountT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the item count for.

Returns

The field item count or -1 if the dimension index or field offset are invalid.

GetDimensionFieldItemContributorsT()

Return the classification values that are related to a field item.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldItemContributorsT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, const SourceValueInfoT** Values, int* IndexLen)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldItemContributorsT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, const SourceValueInfoT** Values, int* IndexLen)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the label for.
WhichItem	Input	The item index within the dimension field.
Values	Output	The array of returned values.
IndexLen	Output	The size of the returned array. If the operation is successful, but the result set is empty, then `IndexLen` will be set to zero and `Values` will be NULL.

Returns

1	Success.
0	Failed.

GetDimensionFieldItemIdentifierT()

Return the ID of a field item.

Each DimensionFieldItem has an ID and a label (display name). For example, for the dimension containing the Gender field:

GetDimensionFieldItemIdentifierT will return codes such as M and F.
GetDimensionFieldItemLabelT will return labels such as Male and Female.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldItemIdentifierT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldItemIdentifierT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the ID for.
WhichItem	Input	The item index to return the ID for.

Returns

The field ID or NULL if the dimension index, field offset, or item index are invalid.

GetDimensionFieldItemLabelT()

Return the label (display name) of a field item.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldItemLabelT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldItemLabelT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the label for.
WhichItem	Input	The item index to return the label for.

Returns

The field label or NULL if the dimension index, field offset, or item index are invalid.

GetDimensionFieldItemTypeT()

Return the type of a field item.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldItemTypeT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldItemTypeT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to return the type of.
WhichItem	Input	The item index to return the type of.

Returns

One of the following item types:

`CAT_TYPE_INVALID`	-1	An invalid dimension index or dimension item index was supplied.
`CAT_TYPE_PLAIN`	0	Item represents a normal classification field.
`CAT_TYPE_HIERARCHY`	1	Item represents an hierarchic classification field.
`CAT_TYPE_GRAND_TOTAL`	2	Item represents a recode total that contains all classification values within the field.
`CAT_TYPE_SUB_TOTAL`	3	Item represents a recode total that contains a strict subset of classifications values within the field.
`CAT_TYPE_OVERLAPPED`	4	Place holder (not currently supported). Overlapped totals can occur in hierarchical fields whose definition is a directed acyclic graphs (DAG) rather than a tree. In a DAG the same leaf item may be counted multiple times depending on which higher level nodes in the hierarchy are present in the recode.
`CAT_TYPE_STORED_TOTAL`	5	Item represents a stored total computed by the server and stored in an SXV4 cube.

Totals and Field Types

AreAllCubeTotalsAdditiveT()

For the item type CAT_TYPE_GRAND_TOTAL, the totals may be additive or non-additive. This function provides a way to identify whether the totals are additive or non-additive.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

AreAllCubeTotalsAdditiveT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

1	The totals are additive.
0	One or more cube totals are not additive.

DoesFieldItemContainUnclassifiedValuesT()

Determine whether the field Item contains unclassifiable data.

Unclassifiable data may be caused by null input values when data is channelled in to a SuperSTAR database, or by classification User Defined Fields that are based on the results of illegal mathematical operations such as division by zero.

Unclassified data may be grouped with other underlying field items. In this situation, the Grouped output variable will be set to true. Your application can then use the function GetDimensionFieldItemContributorsT to determine which items have been grouped.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

DoesFieldItemContainUnclassifiedValuesT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, int* Grouped)

PrepareJob, PerformJob or CleanUpJob:

CPP

DoesFieldItemContainUnclassifiedValuesT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, int* Grouped)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.
WhichItem	Input	The item index to query.
Grouped	Output	Will be set to 1 if the field item contains an unclassifiable data field item.

Returns

1	The item contains unclassified values.
0	The item does not contain unclassified values.

GetDimensionStatisticalFieldTypeT()

Retrieve the type of a statistical field. This function does not take a WhichItem argument because summation fields can only have 1 item.

For a string representation of a summation field use GetDimensionFieldLabel to get the base summation option and GetDimensionFieldItemIdentifier to get the statistical function used.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetDimensionStatisticalFieldTypeT(JobInfoT* JobInfo,int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.

Returns

One of the following item types:

STATISTIC_FIELD_NOT_SUMMATION	-2	The dimension and field index refer to a non-summation field.
STATISTIC_FIELD_INVALID	-1	The dimension and field Index do not refer to a valid dimension field.
STATISTIC_FIELD_SUM	0	The total of all the values. This is the default statistical operation on summation fields.
STATISTIC_FIELD_VARIANCE	1	How spread out a distribution is. The variance is defined as the average squared deviation of each number from its mean.
STATISTIC_FIELD_COUNT_DISTINCT	2	A count of the number of distinct results.
STATISTIC_FIELD_RKEYXOR	3	The record key (used to implement perturbation algorithms).
STATISTIC_FIELD_MEAN	4	The sum of all the values divided by the number of values.
STATISTIC_FIELD_STANDDEV	5	How spread out a distribution is. This is defined as the square root of the variance.
STATISTIC_FIELD_STANDSEM	6	The standard error of the mean (SEM). This is the standard deviation of the sample divided by the square root of the sample size.
STATISTIC_FIELD_FIRST_QUARTILE	7	The value that separates the lowest 25% of values from the rest of the population.
STATISTIC_FIELD_MEDIAN	8	The middle of a distribution; the median cuts the data set in half.
STATISTIC_FIELD_LAST_QUARTILE	9	The value that separates the highest 25% of values from the rest of the population.
STATISTIC_FIELD_FIRST_DECILE	10	The value that separates the lowest 10% of values from the rest of the population.
STATISTIC_FIELD_SECOND_DECILE	11	The value that separates the lowest 20% of values from the rest of the population.
STATISTIC_FIELD_THIRD_DECILE	12	The value that separates the lowest 30% of values from the rest of the population.
STATISTIC_FIELD_FOURTH_DECILE	13	The value that separates the lowest 40% of values from the rest of the population. There is no specific item type for the 5th decile because it is the same as the median.
STATISTIC_FIELD_SIXTH_DECILE	14	The value that separates the lowest 60% of values from the rest of the population.
STATISTIC_FIELD_SEVENTH_DECILE	15	The value that separates the lowest 70% of values from the rest of the population.
STATISTIC_FIELD_EIGHTH_DECILE	16	The value that separates the lowest 80% of values from the rest of the population.
STATISTIC_FIELD_LAST_DECILE	17	The value that separates the lowest 90% of values from the rest of the population.
STATISTIC_FIELD_GINI	18	A measure of inequality of a distribution.
STATISTIC_FIELD_LARGE_N	19	The maximum and next 3 largest values from contributing unit records.
STATISTIC_FIELD_SMALL_N	20	The minimum and next 3 smallest values from contributing unit records.
STATISTIC_FIELD_ASSOCIATED_SUM	21	An associated sum.

GetDimensionStatisticFunctionTypeT()

Retrieve the type of a statistical function being applied to a summation field.

Available To	`PreJob`

CPP

GetDimensionStatisticFunctionTypeT(PreJobInfoT* JobInfo,int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.

Returns

One of the following item types:

STATISTIC_FIELD_NOT_SUMMATION	-2	The dimension and field index refer to a non-summation field.
STATISTIC_FIELD_INVALID	-1	The dimension and field Index do not refer to a valid dimension field.
STATISTIC_FIELD_SUM	0	The total of all the values. This is the default statistical operation on summation fields.
STATISTIC_FIELD_VARIANCE	1	How spread out a distribution is. The variance is defined as the average squared deviation of each number from its mean.
STATISTIC_FIELD_COUNT_DISTINCT	2	A count of the number of distinct results.
STATISTIC_FIELD_RKEYXOR	3	The record key (used to implement perturbation algorithms).
STATISTIC_FIELD_MEAN	4	The sum of all the values divided by the number of values.
STATISTIC_FIELD_STANDDEV	5	How spread out a distribution is. This is defined as the square root of the variance.
STATISTIC_FIELD_STANDSEM	6	The standard error of the mean (SEM). This is the standard deviation of the sample divided by the square root of the sample size.
STATISTIC_FIELD_FIRST_QUARTILE	7	The value that separates the lowest 25% of values from the rest of the population.
STATISTIC_FIELD_MEDIAN	8	The middle of a distribution; the median cuts the data set in half.
STATISTIC_FIELD_LAST_QUARTILE	9	The value that separates the highest 25% of values from the rest of the population.
STATISTIC_FIELD_FIRST_DECILE	10	The value that separates the lowest 10% of values from the rest of the population.
STATISTIC_FIELD_SECOND_DECILE	11	The value that separates the lowest 20% of values from the rest of the population.
STATISTIC_FIELD_THIRD_DECILE	12	The value that separates the lowest 30% of values from the rest of the population.
STATISTIC_FIELD_FOURTH_DECILE	13	The value that separates the lowest 40% of values from the rest of the population. There is no specific item type for the 5th decile because it is the same as the median.
STATISTIC_FIELD_SIXTH_DECILE	14	The value that separates the lowest 60% of values from the rest of the population.
STATISTIC_FIELD_SEVENTH_DECILE	15	The value that separates the lowest 70% of values from the rest of the population.
STATISTIC_FIELD_EIGHTH_DECILE	16	The value that separates the lowest 80% of values from the rest of the population.
STATISTIC_FIELD_LAST_DECILE	17	The value that separates the lowest 90% of values from the rest of the population.
STATISTIC_FIELD_GINI	18	A measure of inequality of a distribution.
STATISTIC_FIELD_LARGE_N	19	The maximum and next 3 largest values from contributing unit records.
STATISTIC_FIELD_SMALL_N	20	The minimum and next 3 smallest values from contributing unit records.
STATISTIC_FIELD_ASSOCIATED_SUM	21	An associated sum.

GetDimensionFieldTotalsT()

Retrieve the indexes of the totals within a dimension.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldTotalsT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, const int** Values, int *IndexCount)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldTotalsT(JobInfoT *JobInfo, int Dimension, int FieldOffset, const int** Values, int *IndexCount)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.
Values	Output	An array of dimension item indexes within the dimension that are totals (i.e., have the type 1, 2, 3 or 4). This will be NULL if there are no totals in the dimension.
IndexCount	Output	The number of field item indexes returned by the function call. This will contain -1 if an invalid dimension index or an invalid dimension item index were specified.

Returns

1	Success.
0	Failed.

GetDimensionFieldTotalItemsT()

Retrieve the indexes of the items that make up a field total item.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldTotalItemsT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, const int** Values, int *IndexCount)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldTotalItemsT(JobInfoT *JobInfo, int Dimension, int FieldOffset, int WhichItem, const int** Values, int *IndexCount)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.
Values	Output	An array of dimension item indexes within the dimension that are part of the total. This will be NULL if the dimension item is not a total.
IndexCount	Output	The number of dimension item indexes returned by the function call. This will contain -1 if an invalid dimension index or an invalid dimension item index were specified.

Returns

1	Success.
0	Failed.

Default Summation

GetDefaultSummationIdentifierT()

Retrieve the ID of the default summation that is used when no summation is explicitly added to a table.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDefaultSummationIdentifierT(PreJobInfoT *JobInfo)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDefaultSummationIdentifierT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The default summation ID or NULL on failure.

GetDefaultSummationFieldTypeT()

Retrieve the field type of the default summation that is used when no summation is explicitly added to a table.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDefaultSummationFieldTypeT(PreJobInfoT* JobInfo)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDefaultSummationFieldTypeT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The default summation field type or NULL on failure.

GetDefaultSummationTableIdentifierT()

Retrieve the table ID of the table the default summation belongs to.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetDefaultSummationTableIdentifierT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The table ID or NULL on failure.

GetDefaultSummationLabelT()

Retrieve the label of the default summation that is used when no summation is explicitly added to a table.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDefaultSummationLabelT(PreJobInfoT *JobInfo)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDefaultSummationLabelT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The default summation label or NULL on failure.

GetDefaultSummationTableLabelT()

Retrieve the label of the table the default summation belongs to.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetDefaultSummationTableLabelT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The table label or NULL on failure.

GetDimensionFieldFactTableIdentifierT()

Retrieve the ID of the table a field belongs to.

Available To	`PreJob`	`PrepareJob`	`PerformJob`	`CleanUpJob`

PreJob:

CPP

GetDimensionFieldFactTableIdentifierT(PreJobInfoT *JobInfo, int Dimension, int FieldOffset)

PrepareJob, PerformJob or CleanUpJob:

CPP

GetDimensionFieldFactTableIdentifierT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.

Returns

The table ID or NULL on failure.

GetDefaultSummationTableLabelT()

Retrieve the label of the table a field belongs to.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetDimensionFieldFactTableLabelT(JobInfoT *JobInfo, int Dimension, int FieldOffset)

Arguments

JobInfo	Input	Information about the current job.
Dimension	Input	The dimension index.
FieldOffset	Input	The field index within this dimension to query.

Returns

The table label or NULL on failure.

Summation Functions

AreSummationTotalsAdditiveT()

Determine whether all the totals for a given summation are additive with respect to the related cells. Additivity is the property that a given total can be determined by adding up all the contributing cells.
If all the totals are additive, then the totals can be recalculated with help from GetDimensionFieldTotalItemsT to determine the contributors.

If the query involves multiple fact tables with a many-to-many relationship between them, this will return false for all summations.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

AreSummationTotalsAdditiveT(JobInfoT *JobInfo, int SummationOffset)

Arguments

JobInfo	Input	Information about the current job.
SummationOffset	Input	The summation index of the summation to check for additivity. This is equilvalent to the field index within the dimension which has type DIM_TYPE_SUMMATION

Returns

1	Additive
0	Not additive, or error

Database Functions

GetNumberRecordsInTableT()

Retrieve the number of records in the specified table.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CODE

GetNumberRecordsInTableT(JobInfoT *JobInfo, const char * tableName, double * result)

Arguments

JobInfo	Input	Information about the current job.
tableName	Input	The name of the table to query.
result	Output	The number of records.

Returns

1	Success.
0	Failed.

GetDatabaseCodePageT()

Retrieve the system codepage ID for the SXV4 database.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CODE

GetDatabaseCodePageT(JobInfoT *JobInfo)

Arguments

JobInfo	Input	Information about the current job.

Returns

The system codepage, or 0 if there is no codepage set for the database.
