Data Cube Associations

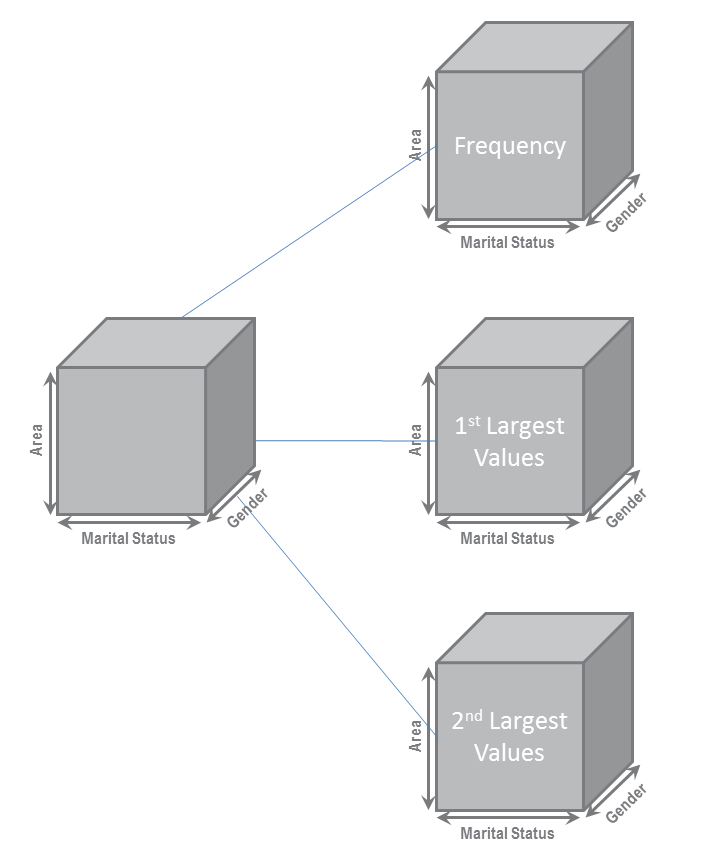

Tabulation results are stored in a data cube. The cross tabulation cube can be associated with other results, such as frequency of contributors and first N largest contributors.

The associations between the cross tabulation cube and others are determined by association names.

For example:

AddAssociationT()

Add multiple association cubes to a job.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

AddAssociationT(JobInfoT *JobInfo, const char* AssociationName, int Num)

Arguments

JobInfo	Input	Information about the current job.
AssociationName	Input	The name of a result, such as FREQ, TOPN, CONCEALMENT, CELL_ERRORS.
Num	Input	The number of the association.

Returns

1	Success.
0	Failed.

GetAssociationNamesT()

Retrieve the names of the associations that exist in a job.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetAssociationNamesT(JobInfoT* JobInfo,int* Len)

Arguments

JobInfo	Input	Information about the current job.
Len	Output	The number of associations.

Returns

An array containing the association names, or NULL if there are no associations.

GetNumOfAssociatedCubeT()

Retrieve the number of associated results for a tabulation result. Depending on the type of the association, there may be multiple values for the association name.

For example:

ASSOCATION_FREQ will have a single associated value for each cell in the cube.
ASSOCIATION_TOPN will have multiple associated values determined by the value of 'N' specified in the SuperADMIN properties when the requesting module was configured.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

GetNumOfAssociatedCubeT(JobInfoT *JobInfo, const char* AssociationName)

Arguments

JobInfo	Input	Information about the current job.
AssociationName	Input	The name of an association.

Returns

The number of associated cubes, or 0 if the requested association does not exist.

DoesAssociationExistT()

Query the existence of an association for a tabulation result.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

DoesAssociationExistT(JobInfoT* JobInfo, const char* AssociationName)

Arguments

JobInfo	Input	Information about the current job.
AssociationName	Input	The name of an association.

Returns

1	The association exists.
0	The association does not exist.

DoesNthAssociationExistT()

Query the existence of an nth association result for a given association.

Associations such as TOPN can have multiple associated values for the same association name.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

DoesNthAssociationExistT(JobInfoT* JobInfo, const char* AssociationName,int Pos)

Arguments

JobInfo	Input	Information about the current job.
ResultName	Input	The name of an association result.
Pos	Input	The result position to query.

Returns

1	The association exists.
0	The association does not exist.

DuplicateTabulationCubeT()

Duplicate the cross tabulation cube and give the duplicate a name. The name can be used to retrieve/access the duplicated cube.

Available To	`PrepareJob`	`PerformJob`	`CleanUpJob`

CPP

DuplicateTabulationCubeT(JobInfoT *JobInfo, const char* AssociationName)

Arguments

JobInfo	Input	Information about the current job.
AssociationName	Input	The name of an association.

Returns

1	Cells are available.
0	No cells are available.
