Settings

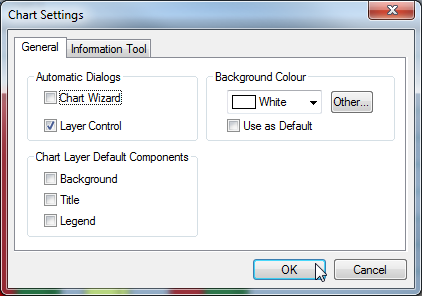

Select View > Chart Settings to edit chart settings. The Chart Settings window displays.
The following settings are available:
General Tab
Setting | Description |
|---|---|
Automatic Dialogs | Select these options to automatically open the Chart Wizard and/or Layer Control window every time you create a new chart. |
Chart Layer Default Components | Select these options to automatically create charts with a Background, Title and/or Legend. |
Background Colour | Set the chart background colour. Select the check box to make this the default setting for future charts. |
Information Tool Tab
Setting | Description |
|---|---|
Information Window Delay | Set the delay before the ToolTip appears when using the Info tool (Tools > Info). Acceptable values are between 0.01 and 10 seconds. |
Text Colour | Set the text colour to use for the information ToolTip. Select Use Windows Default to use the default system setting. |
Background Colour | Set the background colour to use for the information ToolTip. Select Use Windows Default to use the default system setting. |
Annotations | Configure what is displayed in the ToolTip annotations. |
Values | Configure whether data values display in the ToolTip and the number of decimal places. |
