Overview - SuperWEB2

SuperWEB2 is a browser based data analysis client that allows end users to create tabulations in their web browser.

SuperWEB2 runs within a Java based web application container (Tomcat), and can use a RDBMS to store user saved tables and large queries pending download by the user.

SuperWEB2 supports mandatory fields, can display relative standard errors, can be branded to suit your organisation, can display graphs/charts and maps based on the tabulated data, and is fully multilingual.

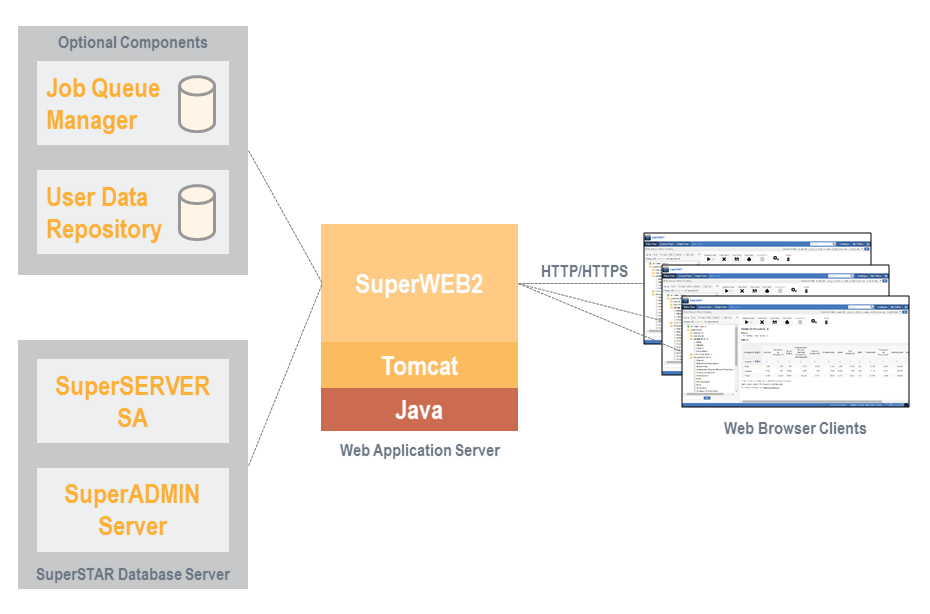

The following diagram shows an overview of the SuperWEB2 architecture.

Security Configuration and Port Use

If you are deploying SuperWEB2 into a network environment that has network and host level security, you will need to configure the network security devices and the host level security on the relevant hosts. See Port Usage - SuperSTAR for full details.

You must permit network responses for connections initiated from the SuperWEB2 server to the SuperSERVER and SuperADMIN servers. Responses are sent to the initiating port.

If you are using the User Data Repository and Job Queue Manager you must also permit network responses from the database servers and allow communication with application clients.
