Multi-Homed Hosts

A multi-homed host is a computer that has multiple IP addresses to connected networks (it is physically connected to multiple data links that can be on the same or different networks).

In situations where the server hosting SuperSTAR is multi-homed (has more than one network adapter, and thus more than one IP address), some additional configuration steps are necessary to ensure that SuperSTAR clients can communicate with SuperSERVER:

Example Architecture

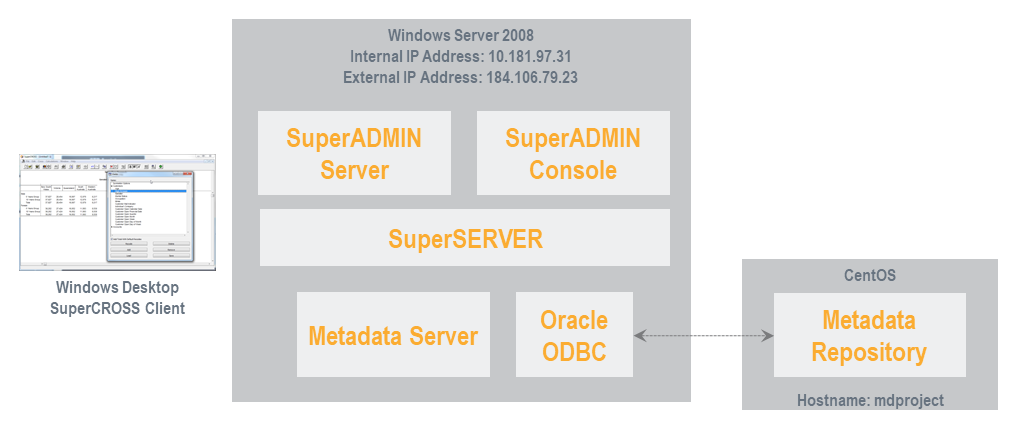

The following steps demonstrate how to configure SuperSTAR for a multi-homed host, using the following example system architecture:

In this example:

  • The SuperSTAR host runs Windows Server 2008. It hosts SuperADMIN, SuperSERVER and the Metadata server.
  • SuperSTAR is installed to the default locations (C:\Program Files\STR  and  C:\ProgramData\STR).

  • The SuperSTAR host has two ethernet adaptors:

    BASH
    Windows IP Configuration

Ethernet adapter private:

   Connection-specific DNS Suffix  . :
   IPv4 Address. . . . . . . . . . . : 10.181.97.31
   Subnet Mask . . . . . . . . . . . : 255.255.224.0

Ethernet adapter public:

   Connection-specific DNS Suffix  . :
   IPv4 Address. . . . . . . . . . . : 184.106.79.23
   Subnet Mask . . . . . . . . . . . : 255.255.255.0

  • The metadata repository is hosted in an Oracle schema located on a CentOS virtual machine.

  • Oracle Instant Client is installed on the SuperSTAR host to enable use of the Oracle ODBC driver for connection to the metadata repository.

Step 1 - Check IP Addresses

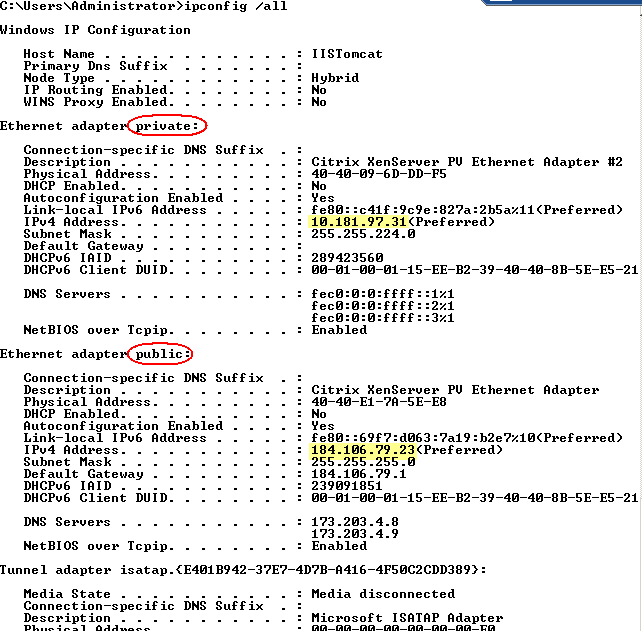

IP addresses are associated with network adaptors. To determine which IP addresses are in use on a particular machine, open a Windows command prompt and use the command ipconfig /all

In the following example, there are two physical adaptors: one is designated as private and has the address 10.181.97.31; the other adaptor is designated as public and has the address 184.106.79.23.

Step 2 - Configure the IP Address for SuperADMIN

Once you have confirmed the IP addresses, you need to set up the SuperADMIN IP addresses in the SuperADMIN Java options file (located at C:\ProgramData\STR\SuperADMIN\server\java-options.txt by default) and in the configuration file jacorb.properties (located at C:\ProgramData\STR\SuperADMIN\server\config\etc\jacorb.properties by default).

  1. Open C:\ProgramData\STR\SuperADMIN\server\java-options.txt in a text editor.
  2. Add the public IP address of the SuperSERVER host:

    1. Locate the following section, which contains various properties that are passed to SuperADMIN:

      PERL
      # Required system properties
-Dconsole=on
-Djacorb.home=config
-Dfile.encoding=UTF8
-Dorg.omg.CORBA.ORBClass=org.jacorb.orb.ORB
-Dorg.omg.CORBA.ORBSingletonClass=org.jacorb.orb.ORBSingleton
-Dlogback.configurationFile=config/logback.xml
-Dlog4j.configurationFile=config/log4j2.xml
-Dstr.config.file=config/local.conf
-Dsa.datafiles.location=.

    2. Add the following parameter on its own line in this list:
      -Djava.rmi.server.hostname=<ip_address>
      Replace <ip_address> with the public IP address of the SuperSERVER host.
      For example:

      PERL
      # Required system properties
-Dconsole=on
-Djacorb.home=config
-Dfile.encoding=UTF8
-Dorg.omg.CORBA.ORBClass=org.jacorb.orb.ORB
-Dorg.omg.CORBA.ORBSingletonClass=org.jacorb.orb.ORBSingleton
-Dlogback.configurationFile=config/logback.xml
-Dlog4j.configurationFile=config/log4j2.xml
-Dstr.config.file=config/local.conf
-Dsa.datafiles.location=.
-Djava.rmi.server.hostname=184.106.79.23
  3. Save your changes.
  4. Open C:\ProgramData\STR\SuperADMIN\server\config\etc\jacorb.properties in a text editor.

    1. Locate the following section of the file:

      PERL
      #jacorb.ior_proxy_host=1.2.3.4
#jacorb.ior_proxy_port=4711
###########################################
#                                         #
#   The Object Adapter Internet Address   #
#                                         #
###########################################
# IP address on multi-homed host (this gets encoded in
# object references). NOTE: Adresses like 127.0.0.X
# will only be accessible from the same machine!
#OAIAddr=1.2.3.4
#OAPort=4711
    2. Remove the initial # character and set the value of jacorb.ior_proxy_host to the public IP address.
    3. Remove the initial # character and set the value of jacorb.ior_proxy_port to the CORBA registry port for SuperSTAR (set this to your chosen value if you have changed it from the default, 9230).

    4. Remove the initial # character and set the value of OAIAddr to the public IP address.

      PERL
      jacorb.ior_proxy_host=184.106.79.23
jacorb.ior_proxy_port=9230
###########################################
#                                         #
#   The Object Adapter Internet Address   #
#                                         #
###########################################
# IP address on multi-homed host (this gets encoded in
# object references). NOTE: Adresses like 127.0.0.X
# will only be accessible from the same machine!
OAIAddr=184.106.79.23
#OAPort=4711

      If you set OAIAddr to 0.0.0.0, this implies all IP addresses.

  5. Save your changes.

Step 3 - Configure SuperSERVER and Metadata Server

The following settings are used below in network.properties and mdserver_network.properties:

OptionDescription
bind=<address>
The address to bind on. This may be set to a specific address or hostname that resolves to this machine, or to any of the wildcard addresses: * (IPv4 and 6), 0.0.0.0 (IPv4 only), :: (IPv4 and 6). The default value of this is 0.0.0.0 / :: (the IPv4/IPv6) bind any addresses.
port=<port>
The port used for incoming connections.
proxy=<host:port>

The address used by external clients to access this instance. This address is also reported as the SuperSERVER address to SuperADMIN and will show up when you run the server command. If you do not set this, the machine's hostname will be used as the address of this instance. If this does not resolve correctly in your environment then other SuperSTAR components will not be able to communicate with it.

<host> can be either an IP address or hostname.


For more information and alternative command line connection setting options, see IPv6 Support.

SuperSERVER

  1. Create a configuration file called network.properties in C:\ProgramData\STR\SuperSERVER SA and add the following text to the file.

    network.properties

    CODE
    # Which local IP address to bind to. This can be a IPv4 or IPv6 address. If you wish to bind to all local addresses, use "0.0.0.0"or "::"
bind=<address>
port=<port>
# Tell clients that your machine address is my-machine-name:9232 when constructing IORs
proxy=<host>:<port>
corba-log-file=C:\SuperSERVER_log.txt
corba-log-level=Info

    For example:

    CODE
    # Which local IP address to bind to. This can be a IPv4 or IPv6 address. If you wish to bind to all local addresses, use "0.0.0.0" or "::"
bind=184.106.79.23
port=9232
# Tell clients that your machine address is my-machine-name:9232 when constructing IORs
proxy=184.106.79.23:9232
corba-log-file=C:\SuperSERVER_log.txt
corba-log-level=Info

  2. Restart SuperSERVER to ensure all configuration changes are applied.

Metadata Server

The following metadata configuration is only required if you are using metadata data sources. If not, skip to Step 4 - Check Firewall Ports.

  1. Create a configuration file called mdserver_network.properties in  C:\ProgramData\STR\SuperSERVER SA and add the following text to the file.

    mdserver_network.properties

    CODE
    # Which local IP address to bind to. This can be a IPv4 or IPv6 address. If you wish to bind to all local addresses, use "0.0.0.0" or "::"
bind=<address>
port=<port>
# Tell clients that your machine address is my-machine-name:8005 when constructing IORs
proxy=<host>:<port>
corba-log-file=C:\MDCorba_log.txt
corba-log-level=Info

    For example:

    CODE
    # Which local IP address to bind to. This can be a IPv4 or IPv6 address. If you wish to bind to all local addresses, use "0.0.0.0" or "::"
bind=184.106.79.23
port=8005
# Tell clients that your machine address is my-machine-name:8005 when constructing IORs
proxy=184.106.79.23:8005
corba-log-file=C:\MDCorba_log.txt
corba-log-level=Info
  2. Create a file called micorc-mdsa.txt in C:\Program Files\STR\SuperSERVER SA.

    1. Add the following lines to the file (8005 is the port used by the Metadata server):

      CODE
      -ORBIIOPAddr inet:<public_ip_address>:8005
-ORBIIOPProxy inet:<public_ip_address>:8005

  3. Create a batch file called MetadataServer.bat in C:\Program Files\STR\SuperSERVER SA.

    1. Add the following lines to the file:

      CODE
      SETLOCAL
set MICORC=%~dp0micorc-mdsa.txt
mdcorbaserver_sa.exe

  4. Configure the ODBC connection to the Oracle repository if you have not already done so.

  5. Configure the connection to the Metadata server by editing the SuperADMINConnection section of C:\ProgramData\STR\SuperSERVER SA\metadata.config.xml (see the instructions for configuring metadata for help with this step).

    XML
    <KEY name="SuperAdminConnection">
  <!-- Setup for mdcorbaserver -->
  <STRING name="SA_HOST">184.106.79.23</STRING> <!-- SuperADMIN host machine -->
  <NUMBER name="SA_PORT" value="9230"/> <!-- SuperADMIN port number machine -->
  <NUMBER name="MDServer_PORT" value="8005"/> <!-- Port number for mdcorbaserver -->
</KEY>
  6. Restart Metadata Server to ensure all configuration changes are applied.

Step 4 - Check Firewall Ports

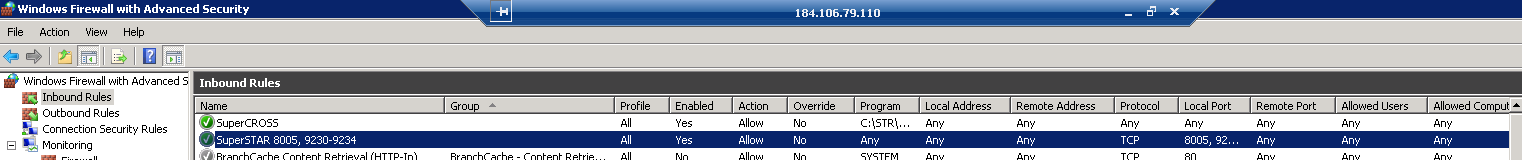

Ensure that the relevant ports are open on the firewall. For more information, see Port Usage.

Step 5 - Check the SuperCROSS to SuperADMIN Connection

The final step is to check the connection between SuperCROSS and SuperADMIN:

  • When SuperCROSS is connecting to a host that has a single IP address (the normal case), you can use either the domain name or the IP address to connect to SuperADMIN.
  • When SuperCROSS is connecting to a multi-homed host, you must use the public IP address of the host.

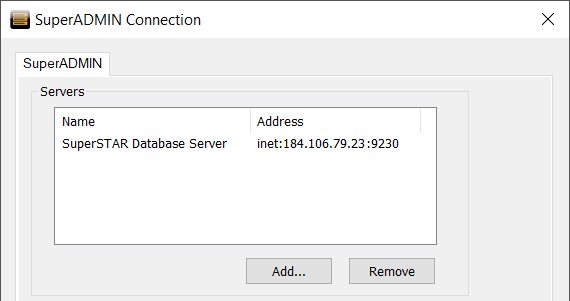

Check the connection setting in SuperCROSS by selecting File > SuperADMIN Connection. If the connection is using the domain name, change it to the public IP address.
