cross.ini

Summary	Stores SuperCROSS display settings. SuperCROSS updates the settings in this file every time the user closes the client so that it can apply the same settings next time.
Default Location	C:\ProgramData\STR\SuperCROSS

[Preferences]

This section stores a number of SuperCROSS user preferences, as well as the most recent X and Y coordinates and size of many of the SuperCROSS windows and dialogs. Settings in this section include:

Entry Description Equivalent Setting in SuperCROSS Client

AddTotal

Whether or not to automatically add a total with default recodes:

0 - Do not automatically add a total.
1 - Automatically add a total.

Add Total With Default Recodes check box in the Fields window.

FieldBoxFont

The font used in the Fields window.

Edit > Options > General > Field List Box (the setting is only saved to cross.ini when Use As Default is selected).

Footnote

The default format of the table footer. You can use the following special codes to display dynamic information about the table:

Code	Represents
&a	The cell/field/field value annotations.
&c	The derivation's footnotes.
&d	The database name.
&e	The standard annotation table footnotes. See Weighted Datasets for more information.
&f	The total set of table footnotes defined in the database for this table.
&n	A newline.
&o	The organisation name (as defined in SuperCROSS under Edit > Options > General).
&p	Details of any columns that have custom power of ten settings applied.
&r	A description of the randomisation applied (for example using a data control plugin). For example "Confidentially rules have been applied to all cells in this table, including randomly rounding to base 3".
&s	The summation option in use.
&t	The filename of the table file.
&v	The details of the fields in use in the table (for example "Martial Status by Occupation").
&x	The table method annotation (if the administrator has configured this). See Confidentiality for more information.
&z	The database annotations.

Double-click the table footer.
Modify the default format.
Select the Use As Default check box.
Click OK.

See Modify Table Header, Table Footer and Field Heading for more information.

ForceCrossTab

Whether to always allow cross tabulation.

0 - Cross tabulation is not always available. For example if the table has just been cross tabulated, the option is greyed out until something changes in the table.
1 - Always allow cross tabulation, even if the table has not changed.

Edit > Options > General > Always Allow Cross-tabulation

Heading

The default format of the table header. You can use the following special codes to display dynamic information about the table:

Code	Represents
&a	The cell/field/field value annotations.
&c	The derivation's footnotes.
&d	The database name.
&e	The standard annotation table footnotes. See Weighted Datasets for more information.
&f	The total set of table footnotes defined in the database for this table.
&n	A newline.
&o	The organisation name (as defined in SuperCROSS under Edit > Options > General).
&p	Details of any columns that have custom power of ten settings applied.
&r	A description of the randomisation applied (for example using a data control plugin). For example "Confidentially rules have been applied to all cells in this table, including randomly rounding to base 3".
&s	The summation option in use.
&t	The filename of the table file.
&v	The details of the fields in use in the table (for example "Martial Status by Occupation").
&x	The table method annotation (if the administrator has configured this). See Confidentiality for more information.
&z	The database annotations.

Double-click the table header.
Modify the default format.
Select the Use As Default check box.
Click OK.

See Modify Table Header, Table Footer and Field Heading for more information.

HideUnusedFieldsInFieldDialog

Whether to hide unused fields in the Fields window:

0 - Do not hide unused fields.
1 - Hide unused fields.

Hide Unused Fields check box in the Fields window.

NumThreads

The number of threads to use. This setting applies to SXV3 files only.

Organisation

The organisation name displayed in the table header section.

Edit > Options > General > Organisation

Quantile Label

The default label used when creating a quantile user defined field. By default, this is set to Values from {Min} to {Max} make up Quantile Range {Num}.

This label applies to all quantiles except those created from weighted databases that use SuperSERVER weightings. These have a separate default label, Weighted Quantile Label.

See Create a Quantile Field for more information.

Cross > Define Fields > Quantile

Quantile Label Value Precision

The number of decimal places used to display the quantile range boundaries in the labels of quantile user defined fields. The setting applies to all types of quantiles and affects the precision of the {Min} and {Max} values in both the Quantile Label and Weighted Quantile Label strings.

This setting does not appear in the cross.ini file by default, so you will need to add it if you want to set a custom precision for these labels.

The precision for quantile labels is not saved in TXDs. SuperCROSS will always use the setting from the cross.ini file.

Quantile Label Rse Precision

The number of decimal places used to display the RSE value in the labels of weighted quantile user defined fields. This setting changes the precision of the {Rse} , {Rse_Min}, and {Rse_Max} values that are substituted into the Weighted Quantile Label string.

This setting does not appear in the cross.ini file by default, so you will need to add it if you want to set a custom precision for these labels.

The precision for RSE values in quantile labels is not saved in TXDs. SuperCROSS will always use the setting from the cross.ini file.

Recode Indent

The indentation displayed on sub items in the Define Recode window.

Edit > Options > General > Recode Indent

RecodeOpenPATH

The default directory for loading recodes when using the Load option in the Fields window.

Edit > Options > Configuration > Location > Open Recode

RecodeSavePATH

The default directory for saving recodes when using the Save option in the Fields window.

Edit > Options > Configuration > Location > Save Recode

RemoveFieldDerivationWhenFieldRemovedFromTable

Whether to remove field derivations from memory when the field is removed from the table.

(Default). When the field is removed from the table, any field derivations will be removed from memory automatically.

Field derivations will remain in memory after a field is removed from the table. This means that if you add the field back from the Fields window, the derivation will be maintained.

This was the default behaviour prior to version 9.9.2, but it has the drawback that the Add Total With Default Recodes option will not apply when the field is added back if the field has a derivation in memory.

RVDateFormat

The format to use for date fields in Record View. You can use the following codes to specify the date format:

Code	Represents
%y	2 digit year without the century (00-99).
%Y	4 digit year.
%m	2 digit month (01-12).
%b	Abbreviated month name (3 characters).
%B	Full month name.
%d	2 digit day of the month (01-31).
%a	Abbreviated weekday name (3 characters).
%A	Full weekday name.
%w	1 digit decimal value for the weekday: 0 - Sunday, 1 - Monday, 2 - Tuesday, 3 - Wednesday, 4 - Thursday, 5 - Friday, 6 - Saturday
%j	3 digit decimal value for the day of the year (001-366).
%W	2 digit decimal value for the week of the year (01-53).

For example:

CODE

RVDateFormat=%Y-%m-%d

By default, this setting does not appear in cross.ini. When this setting is not in the configuration file, SuperCROSS uses the default format, which is equivalent to %d/%m/%Y (e.g. 15/01/2014).

RVTimeFormat

The format to use for time fields in Record View. You can use the following codes to specify the time format:

Code	Represents
%H	Hour in 24 hour format (00-23).
%I	Hour in 12 hour format (00-12).
%M	2 digit minutes (00-59).
%S	2 digit seconds (00-59).
%p	AM or PM.

By default, this setting does not appear in cross.ini. When this setting is not in the configuration file, SuperCROSS uses the default format, which is equivalent to %H:%M:%S (e.g. 17:35:59).

Show Fields Box

Whether or not to show the Fields window by default when opening a new dataset.

0 - Do not show the Fields window by default.
1 - Show the Fields window by default.

Edit > Options > General > Display Fields Dialog Automatically

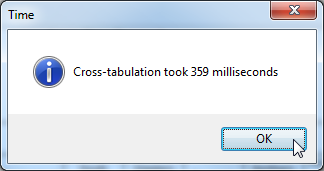

Show Time

Whether or not to display the time taken to complete the cross tabulation.

0 - Do not display the cross tabulation time (default).
1 - Display the cross tabulation time in a popup window following completion of the cross tabulation:

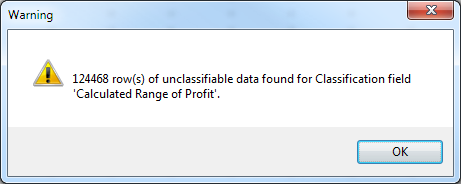

ShowMessageDivisionByZero

Whether to show a warning message if there are rows of unclassifiable data that are referenced by a classification User Defined Field and have not been included in the tabulation results.

This can occur if the table contains a classification User Defined Field that references NULL values (either NULL values in the unit records or as a result of a calculation such as a division by zero).

0 - Do not show a warning message (default).
1 - Show a warning message.

When this option is set to 1, SuperCROSS will display a warning message similar to the following:

TableBackgroundColour

A system RGB value for the table background colour.

Edit > Options > General > Table Background (the setting is only saved to cross.ini when Use As Default is selected).

TableOpenPATH

The default directory for opening save tables (via File > Open).

Edit > Options > Configuration > Location > Open Table

TableSavePATH

The default directory for saving tables (via File > Save As).

Edit > Options > Configuration > Location > Save Table

Too Many Values

Configures the maximum number of fields and values that can be exported in a Fields & Values List text file.

By default, a maximum of 1,000 items will be exported for any given field. If a field has more than that number of items, then the text file will list the total number of items, but will not list the individual items. For example:

CODE

Field Area {SXV4__Retail_Banking__F_Customer__Area_FLD} contains:
	2730 values (too many to list here)

To increase the limit, add this setting to the [Preferences] section of cross.ini. For example:

CODE

Too Many Values= 10000

UDFOpenPATH

The default directory for opening user defined fields (using the Load option on the Define Fields window).

Edit > Options > Configuration > Location > Open UDF

UDFSavePATH

The default directory for saving user defined fields (using the Save option on the Define Fields window).

Edit > Options > Configuration > Location > Save UDF

User Guide

The location of the SuperCROSS user guide, accessible through the Help > Online User Guide menu option in the SuperCROSS client.

Weighted Quantile Label

The default label used when creating a quantile user defined field for a weighted database (SuperSERVER weightings only). Unweighted databases, and databases using SuperCROSS client-side weightings use the Quantile Label instead.

By default, this is set to Values from {Min} to {Max} make up Quantile Range {Num} with RSE of {Rse}.

In addition to using the {Rse} placeholder, which will be replaced with the maximum Relative Standard Error of the range, you can also choose to show the RSE in more detail using the placeholders {Rse_Min} and {Rse_Max} in your Quantile Label.

See Create a Quantile Field for more information.

Cross > Define Fields > Quantile

This section also stores the X and Y coordinates and size of various SuperCROSS windows and dialogs. SuperCROSS stores these values so that it can reopen the windows at the same size and position the next time.

Most of these settings do not appear in cross.ini by default (SuperCROSS adds them as you use the windows). You can reset to the default values by removing these settings from cross.ini.

Windows whose size and position are stored in cross.ini include:

Settings	Size and Position for...
ClassifyWeight_Pos ClassifyWeight_Size	Define Recode window for summation options.
DbTreeDlgPos DbTreeDlgSize	Catalogue - Select Database or Table window.
DEFPos DEFSize	Define Fields window.
FBPos FBSize	Fields window.
MATH_UDFPos MATH_UDFSize	Math user defined field window.
Multiple_UDFPos Multiple_UDFSize	Multiple user defined field window.
Quantile_UDFPos Quantile_UDFSize	Quantile user defined field window.
Range_UDFPos Range_UDFSize	Range user defined field window.
RCDPos RCDSize	Define Recode window for fields.
RVFieldPos RVFieldSize	Record View Options window.
SegmentationPos SegmentationSize	Segmentation window.
ServerMonitorDlgPos ServerMonitorDlgSize	Client/Server Monitor window.
Single_UDFPos Single_UDFSize	Single user defined field window.
Time_UDFPos Time_UDFSize	Time user defined field window.
Unique_UDFPos Unique_UDFSize	Unique user defined field window.

[Export Limits]

This section stores the settings for the Limit Number section in the Record View Options. The user can override these settings by changing the values in the Record View Options dialog.

Entry

Description

SetLimit

Whether or not to limit the number of records returned:

0 - No limit.
1 - Set limit.

Limit

The number of records to limit RecordVIEW to. Can be any integer between 1 and 32000.

[Cross-tabulation]

This section applies to SXV2 and SXV3 format files only; it stores the tabulation method for these datasets.

Do not modify this section.

[Edit Log File]

This section applies to SXV2 and SXV3 format files only. It sets the name of a log file to be updated every time a dataset is edited.

Entry	Description
<dataset_id>	The path and filename to the log file to use for this dataset.

[MetaData Cache]

This section applies to SXV2 and SXV3 format files only. It sets access to SuperCROSS folders for caching meta information when in Network-User mode.

The Metadata cache settings can be useful if SuperSERVER and SuperCROSS are connected by a low bandwidth connection. SuperSERVER can be configured to cache fields and/or field items and mappings on a persistent disk cache. Multiple SuperCROSS clients can take advantage of this cache. Metadata retrieval and caching are carried out on demand, rather than by pre-loading.

Entry	Description
CacheAll	Enables caching and specifies where the cache should be stored. 0 - SuperCROSS will cache value set item metadata only. 1 - SuperCROSS will cache value set item metadata and fields (default).
Path	The path to the folder to cache. This setting can appear multiple times if there are multiple folders to be cached. It is also possible to use a system environment variable to set the path, for example `%applications%`.
SXV2Metadata	A list of SXV2 metadata to be cached, separated by the \| character.
SXV3Metadata	A list of SXV3 metadata to be cached, separated by the \| character.

For example:

CODE

[MetaData Cache]
Path=c:\ProgramData\STR\SuperCROSS\Cache
Path=%applications%
SXV2metadata=.I|.L|.N|.TL|.S|.CNF|.HPP|.INI|
SXV3metatdata=.I|.L|.S|.TL|.BL|.VL|.CNF|.DSC|.INF|.INI|.SRT|.STR

The [Metadata Cache] settings can also be defined in the CrossModule.ini configuration file. If the section appears in both files then the settings in cross.ini take precedence.

[Recode Format]

This section stores a setting relating to how recodes are represented in TXDs.

Entry Description

SetFieldCode

Whether to write field IDs or field names when representing recodes in TXD files.

0 - Field names only. (Default). For example:

CODE

RECODE "Gender" FROM "Gender" FACTTABLE "Customers"
...

1 - Field IDs/codes in addition to field names. You can use this in cases where you want to determine the column name of the source field from the recodes. For example:
CODE
```
RECODE "Gender" FROM CODE "SXV4__Retail_Banking__F_Customer__Gender_FLD" FACTTABLE "Customers"
...
```

This section does not appear in cross.ini by default, so you will need to add it if you want to change this setting from the default. For example:

CODE

[Recode Format]
SetFieldCode=1
